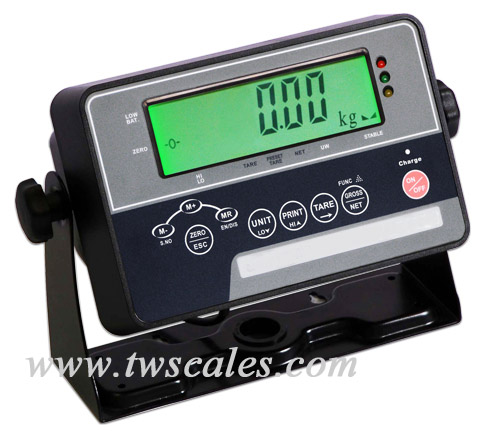

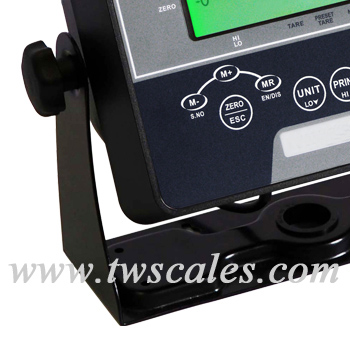

Weighing controller for Weighbridge/Floor scales/Bench scales

Release Time:2015/10/27 11:31:12 Traffic:2198
Weighing controller for Weighbridge/Floor scales/Bench scales

Weighing controller for Weighbridge/Floor scales/Bench scales


Features:


- Easy to read large LCD display with green LED backlight

- Both stainless steel and ABS structure are available

- Dual channel as a standard feature for TWS-8 (connection to larger platforms and floor scales)

- Zero / Tare / Weighing / Simple counting / Percent weighing / Net / Gross / Accumulation / Serial No. / Check weighing functions

- Auto shut off for power saving

- Options: 2 Relay interfaces, 1 RS-232 interface

- TWS indicator is the solution to your weighing indicator applications that require multiple functions, rugged construction, comprehensive yet

intuitive software and multiple connectively options


Specifications:


Model

TWS-6 CAB

TWS-6 CSB

TWS-8 CAB

TWS-8 CSB

Housing

ABS

Stainless steel

ABS

Stainless steel

Resolution

1/30000

1/60000

Weighing units

kg / g / lb / pcs / %

Display

6 digits, 30mm digit height, green backlit LCD display

Dimension(mm)

250×150×90

Weight(kg)

Net weight: 2.5

Gross weight: 2.93

Net weight: 3.03

Gross weight: 3.46

Net weight: 2.5

Gross weight: 2.93

Net weight: 3.03

Gross weight: 3.46

Power supply

9V/ 1A adaptor, or 6V/3Ah rechargeable battery

Load cell excitation

DC 5V, Up to 8x350 ohm load cells

Operating Temp

-5 ~ 40

Certification

OIML , CE
